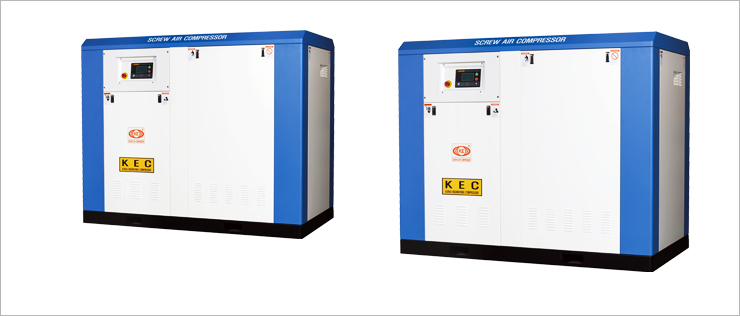

| HOME > PRODUCT > KE Series : Screw Type |
 |
| |
 |
| |
 |
Specifications & Dimensions |
|
|
| Classification |
Model |
KE-75ACA / KE-75VSD |
KE-100ACA / KE-100VSD |
KE-120ACA / KE-120VSD |
Compressor
|
CAPACITY
(㎥/min) |
7bar |
10.05 |
13.80 |
14.25 |
| 9bar |
9.33 |
12.41 |
13.47 |
| 12bar |
7.39 |
10.33 |
11.28 |
| 14.5bar |
6.20 |
8.10 |
9.16 |
| Cooling type |
Air Cooling type / Water cooling type |
Above Ground Air temperature(Surrounding temperature+α)
|
±4-7℃ |
| Drive type |
Coupling direct connection drive
|
| Minimum pressure |
4.5bar |
| Maximum pressure |
14.7bar |
| Above ground pipe(A) |
50 |
Motor
|
Frequency(Hz) |
50/60 |
Regulated Power(kw)
|
55 |
60 |
60 |
| Voltage |
220/380/440 |
220/380/440/3,300/6,600 |
220/380/440/3,300/6,600 |
| Operation type |
Star-Delta/Reactor |
Lubrication Chage amount(liter)
|
50 |
60 |
60 |
| Noise dB(A) |
69 |
71 |
71 |
Dimension
|
Length×Width×Height |
1,900×1,400×1,625 |
2,100×1,400×1,625 |
2,100×1,400×1,625 |
| Weight(kg) |
2,000 |
2,200 |
2,200 |
|
| |
NOTES
1)Unit Performance Measured According to ISO 1271 EDITION 3-1996, C-1996
2)VSD(Variable Speed Drive) OPTION(VOLTAGE 200~400V) |
| |
|
|
